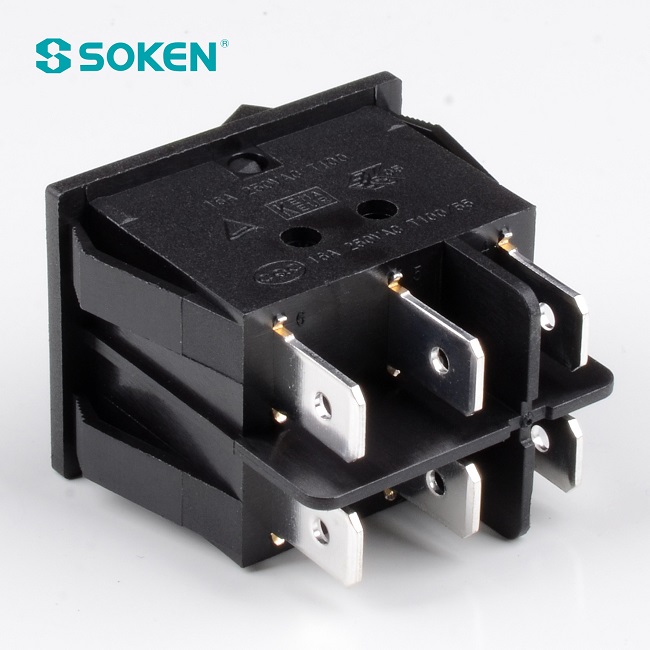

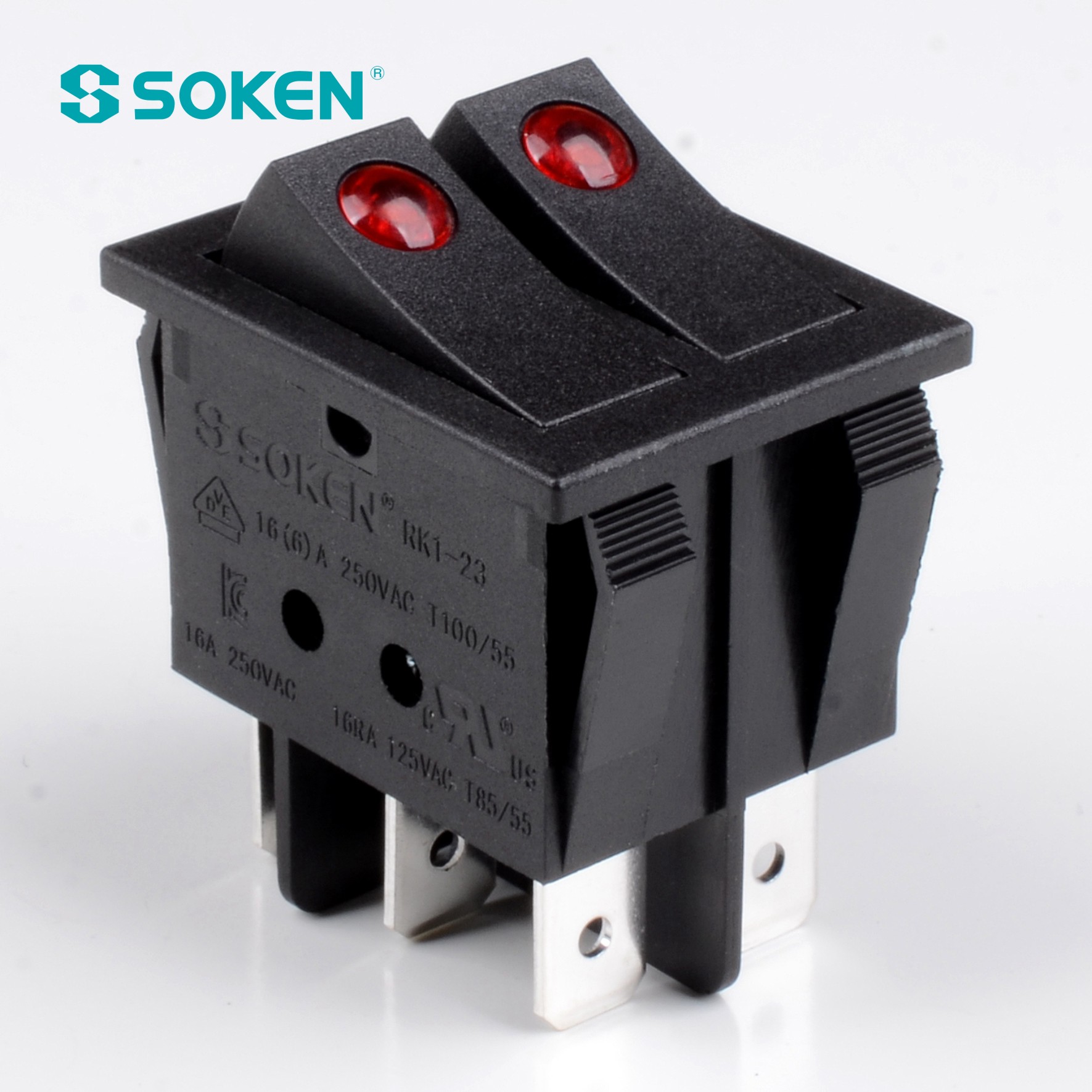

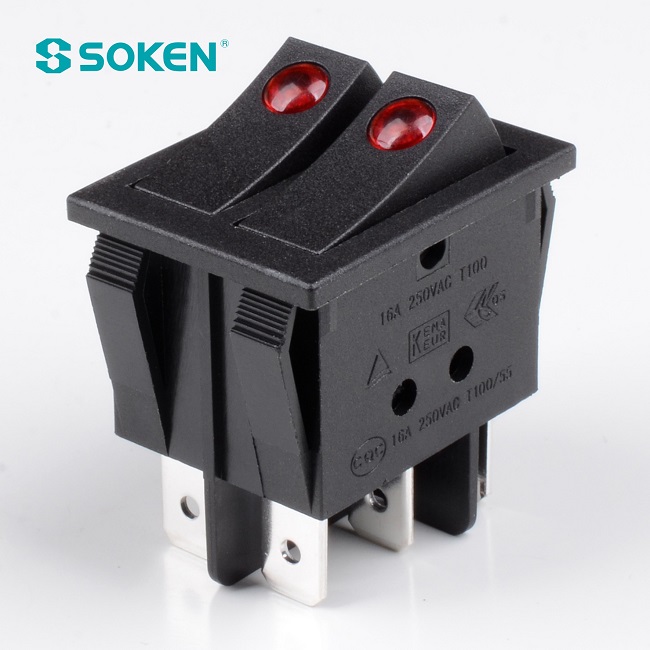

Double on off Rocker Switch

Short Description:

Specification Rating 16A 250VAC Operating temperature -25~85ºC Contact resistance 100mΩ Max Insulation resistance 100mΩ Min Electrical life 10000cycles(16A 250VAC) Applicable standard IEC61058-1 Material list Contact leg Brass T=0.8mm Contact Silver alloy Terminals Brass T=0.8mm Case PA66 –Production Display— —Company Display— Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Acce...

FOB Price: US $0.15~1.5/ Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 700000 Piece/Pieces per Month

Port: Ningbo or Shanghai

Payment Terms: TT/DP/western union/paypa

Send email to us Download as PDF

Product Detail

Product Tags

Specification

Rating	16A 250VAC
Operating temperature	-25~85ºC
Contact resistance	100mΩ Max
Insulation resistance	100mΩ Min
Electrical life	10000cycles(16A 250VAC)
Applicable standard	IEC61058-1

Material list

Contact leg	Brass T=0.8mm
Contact	Silver alloy
Terminals	Brass T=0.8mm
Case	PA66

–Production Display—

—Company Display—

Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
