Small Push Button Switch

Short Description:

—Production Description— Model PS14-1R Push Button Switch Function Push on (Mom) —Production Specification— Rating 250VAC 1A Rated Load 1A 250VAC Contact Resistance 100MΩ Max Dielectric Intensity 1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground Withstand Voltage 1500VAC/min Operating Temperature -25~85°C Insulation Resistance 500VDC, 100MΩ Min Electrical Life ≥10,000 cycles Housing material PA66 Push B...

FOB Price: US $0.15~1.5/ Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 700000 Piece/Pieces per Month

Port: Ningbo or Shanghai

Payment Terms: TT/DP/western union/paypa

Send email to us Download as PDF

Product Detail

Product Tags

—Production Description—

Model	PS14-1R Push Button Switch
Function	Push on (Mom)

—Production Specification—

Rating	250VAC 1A
Rated Load	1A 250VAC
Contact Resistance	100MΩ Max
Dielectric Intensity	1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
Withstand Voltage	1500VAC/min
Operating Temperature	-25~85°C
Insulation Resistance	500VDC, 100MΩ Min
Electrical Life	≥10,000 cycles
Housing material	PA66
Push Button	PC

–-Production Material—

Base plastic	Nylon 66
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Tungsten steel
Cover plastic	PC

— Advantage —

. CQC, TUV, K, RoHS approved

. Used for home appliance and electronic equipments

. Machining as you required

. Custom made according your samples, drawings, pictures or photos

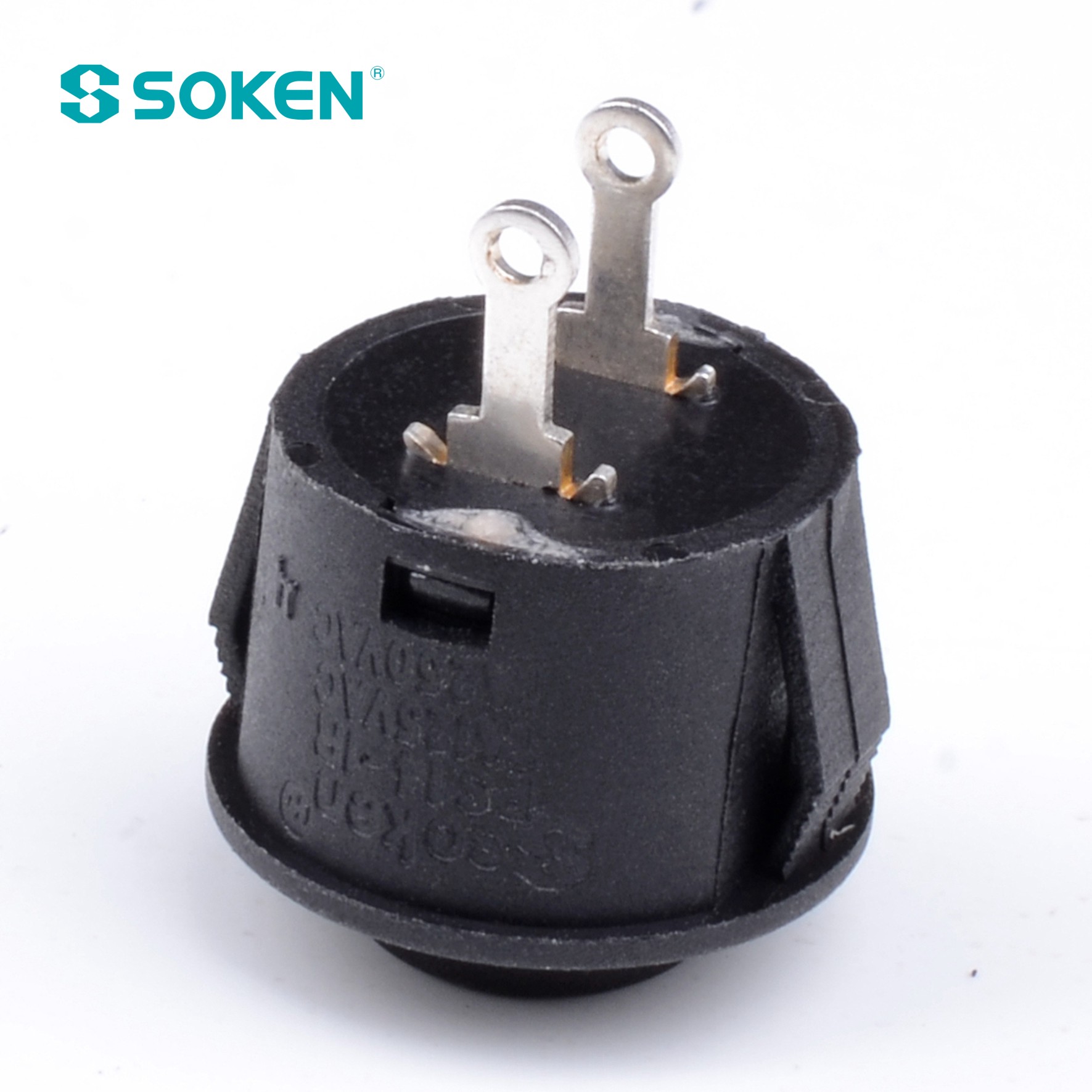

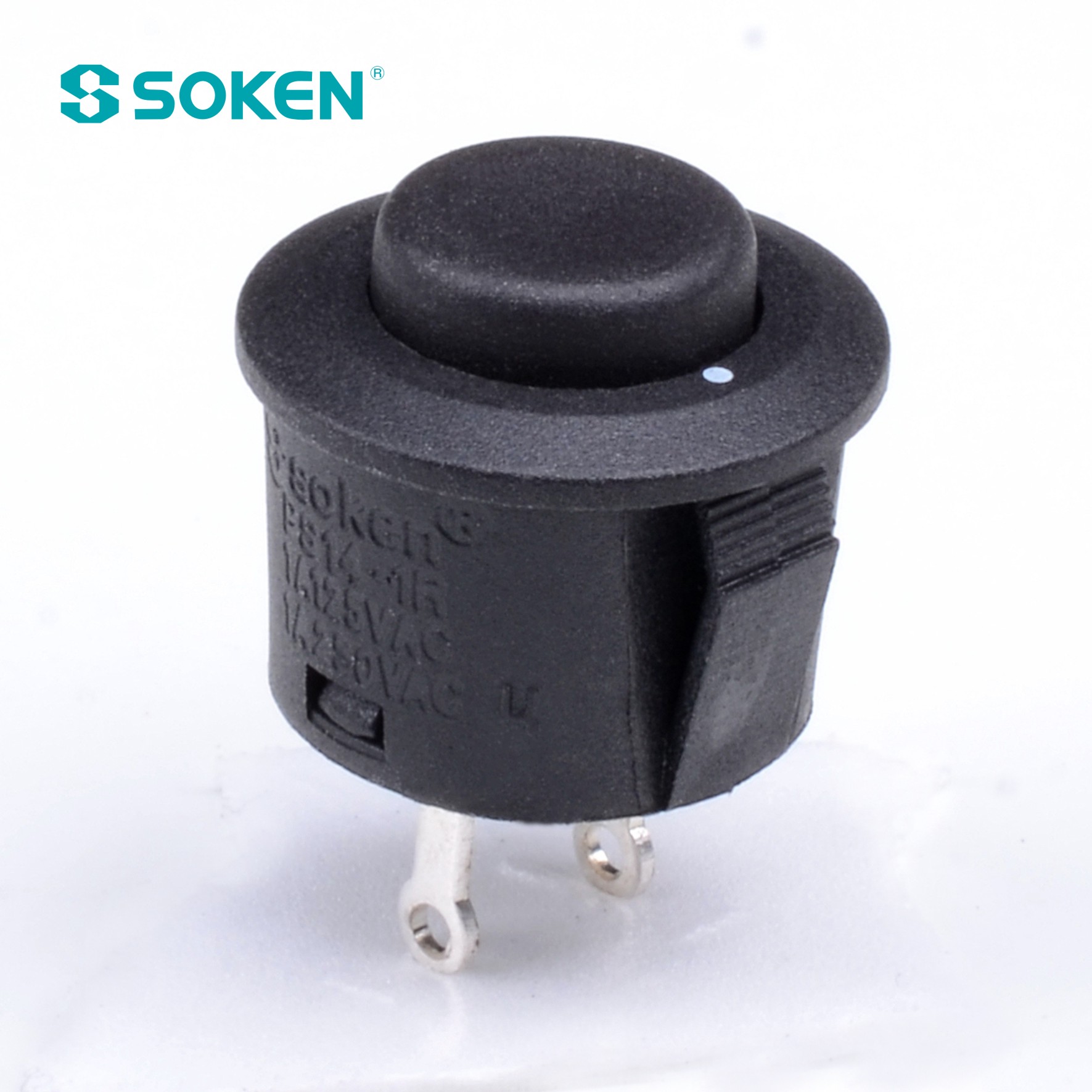

–Production Display—

—Company Display—

Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.

Installation drawing
