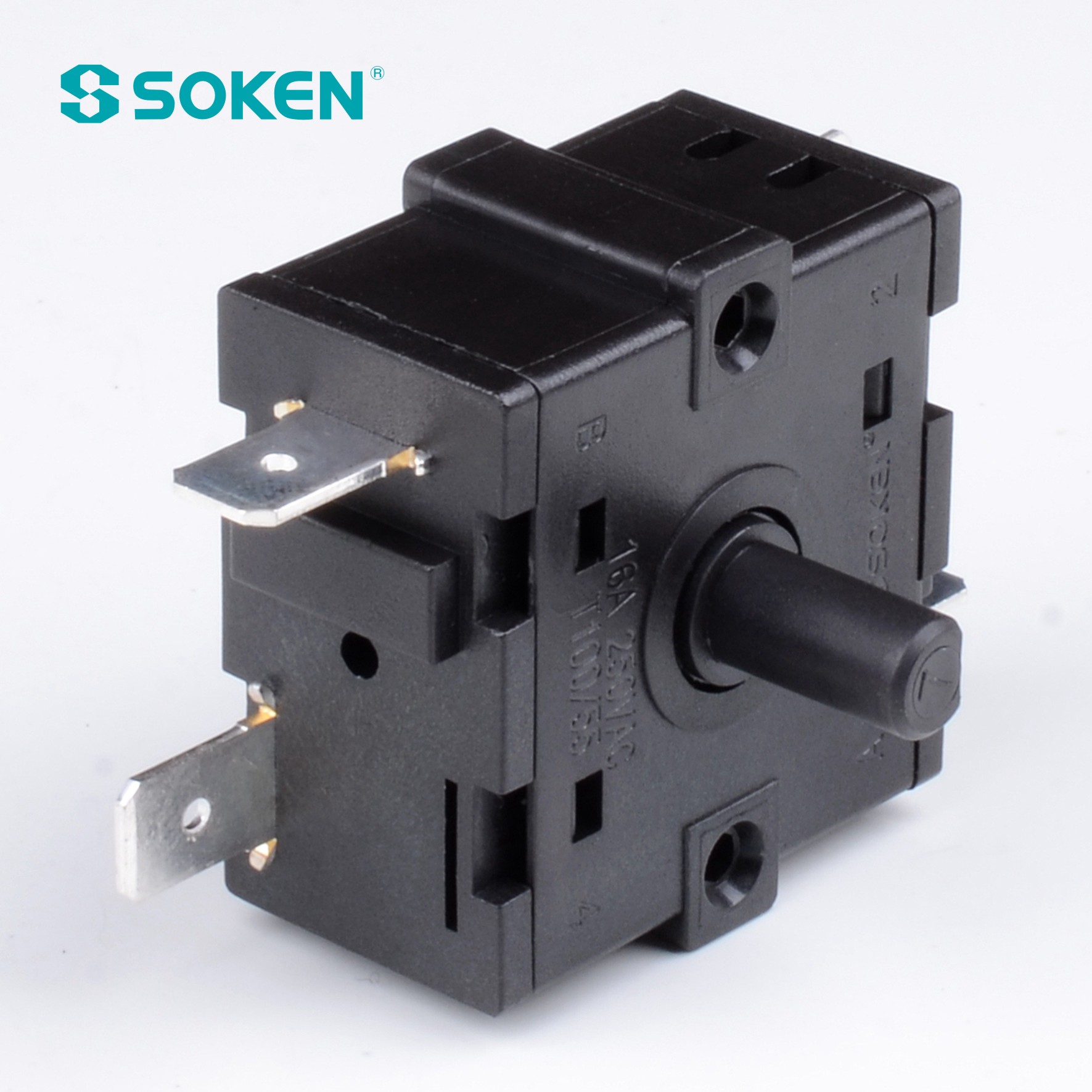

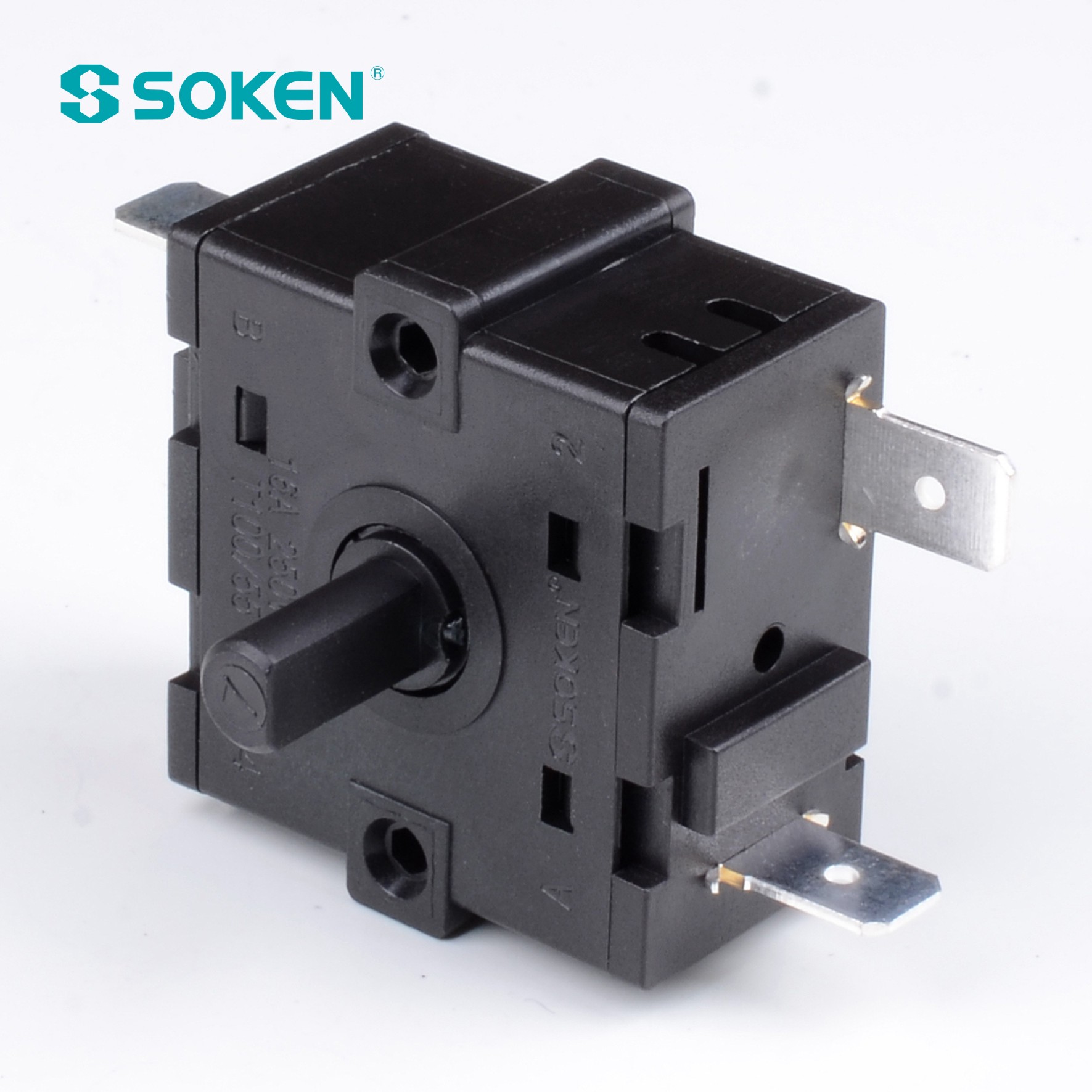

Sokenblender Rotary Switch
Short Description:
Specification Rating 16A 250VAC Operating temperature -25~85ºC Contact resistance 100mΩ Max Insulation resistance 100mΩ Min Electrical life 10000cycles(16A 250VAC) Applicable standard IEC61058-1 Material list Contact leg Brass T=0.8mm Contact Silver alloy Terminals Brass T=0.8mm Case PA66 Gear PA66 Drawing Product display Company introduction Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories ...
Product Detail
Product Tags
Specification
| Rating | 16A 250VAC |
| Operating temperature |
-25~85ºC |
| Contact resistance | 100mΩ Max |
| Insulation resistance | 100mΩ Min |
| Electrical life | 10000cycles(16A 250VAC) |
| Applicable standard | IEC61058-1 |
Material list
| Contact leg | Brass T=0.8mm |
| Contact | Silver alloy |
| Terminals | Brass T=0.8mm |
| Case | PA66 |
| Gear | PA66 |
Drawing
Product display
Company introduction
Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
